Elevation Packaging & Equipment is proud to offer a line of Imeco manual bag placing equipment to our customers that also serve as automatic bag hangers.

GWG – Manual bag placing Compact Electronic Gravity Feeder Gross Weight Packer

Suitable for free flowing product bagging, such as, but not limited to:
Agriculture [seed, beans, cereal, corn, grass seed, organic pellet fertilizer] Foods [malt, sugar, salt, semolina, coffee, maize grits] Animal Feed [animal feed, mineral feed, concentrated feed] Inorganic Fertilizer [urea, TSP, SSP, C.A.N., AN, NPK, rock phosphate] Petrochemicals [plastic granules, resin powders] Construction materials [sand, gravel] Fuels [coals, wood pellets]

FEATURES:

  • HEAVY DUTY DESIGN
  • SURGE HOPPER AND PRODUCT LEVEL INDICATOR
  • GRAVITY PNEUMATIC FEEDER
  • ELLIPTICAL DUST TIGHT AUTOMATIC SPOUT
  • CAPACITY UP TO 6 BAGS/MIN
  • HEAVY DUTY SUPPORT PEDESTAL
  • AVAILABLE IN 2 SIZES, 5 -25 kg or 25 – 100 Kg
  • RS-485 COMMUNICATION INTERFACE
  • USER FRIENDLY OPERATOR INTERFACE
  • AUTOMATIC ZERO SETTING AFTER EACH BAG (NET WEIGH SYSTEM WORKING PRINCIPLE)

OPTIONS

  • EXECUTION WITH SS304 PRODUCT CONTACT PARTS
  • EXECUTION FOR AGGRESSIVE ENVIRONMENT & PRODUCTS
  • PROFIBUS DP OR ANALOG COMMUNICATION INTERFACES
  • CEILING MOUNTING VERSION
  • SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)

GWB – Manual bag placing Compact Electronic Belt Feeder Gross Weight Packer

Suitable for NOT FREE FLOWING product bagging or materials which need to be handled carefully to maintain their structure, such as, but not limited to:
Agriculture [flakes, grass seed, organic pellet fertilizer] Foods [potatoes flakes, maize grits, maize meal] Animal Feed [pollard, bran, soybean meal, animal feed, mineral feed, concentrated feed] Petrochemicals [plastic granules, resin powders] Construction materials [sand, gravel] Fuels [coals, wood pellets]

FEATURES:

  • HEAVY DUTY DESIGN
  • SURGE HOPPER AND PRODUCT LEVEL INDICATOR
  • BELT FEEDER
  • PNEUMATIC CUT OFF GATE
  • ELLIPTICAL DUST TIGHT AUTOMATIC SPOUT
  • CAPACITY UP TO 5 BAGS/MIN
  • HEAVY DUTY SUPPORT PEDESTAL
  • AVAILABLE IN 2 SIZES, 5 -25 kg or 25 – 100 Kg
  • RS-485 COMMUNICATION INTERFACE
  • USER FRIENDLY OPERATOR INTERFACE
  • AUTOMATIC ZERO SETTING AFTER EACH BAG (NET WEIGH SYSTEM WORKING PRINCIPLE)

OPTIONS

  • EXECUTION WITH SS304 PRODUCT CONTACT PARTS
  • PROFIBUS DP OR ANALOG COMMUNICATION INTERFACES
  • CEILING MOUNTING VERSION
  • SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)

GWF – Manual bag placing Compact Electronic Turbine Feeder Gross Weight Packer

Suitable for FLOURY product bagging (such as wheat flour, maize flour, rice flour, semolina, etc.)

FEATURES:

  • HEAVY DUTY DESIGN
  • SURGE HOPPER AND PRODUCT LEVEL INDICATOR
  • VERTICAL SHAFT TURBINE FEEDER
  • DOUBLE PNEUMATIC CUT OFF GATE
  • ELLIPTICAL DUST TIGHT AUTOMATIC SPOUT
  • CAPACITY UP TO 4 BAGS/MIN
  • HEAVY DUTY SUPPORT PEDESTAL
  • AVAILABLE IN 2 SIZES, 5 -25 kg or 25 – 100 Kg
  • RS-485 COMMUNICATION INTERFACE
  • USER FRIENDLY OPERATOR INTERFACE
  • AUTOMATIC ZERO SETTING AFTER EACH BAG (NET WEIGH SYSTEM WORKING PRINCIPLE)

OPTIONS

  • PROFIBUS DP OR ANALOG COMMUNICATION INTERFACES
  • CEILING MOUNTING VERSION
  • SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)

GWS – Manual bag placing Compact Electronic single screw Feeder Gross Weight Packer


Suitable for all POWDERY products bagging (such as FLOUR mixes, additives, vitamins, feed pre-mixes, milk powders, minerals, PVC powders, etc.)

FEATURES:

  • HEAVY DUTY DESIGN
  • SURGE HOPPER AND PRODUCT LEVEL INDICATOR
  • SINGLE SCREW FEEDER
  • PNEUMATIC CUT OFF GATE
  • ELLIPTICAL DUST TIGHT AUTOMATIC SPOUT
  • CAPACITY UP TO 5 BAGS/MIN
  • HEAVY DUTY SUPPORT PEDESTAL
  • AVAILABLE IN 2 SIZES, 5 -25 kg or 25 – 100 Kg
  • RS-485 COMMUNICATION INTERFACE
  • USER FRIENDLY OPERATOR INTERFACE
  • AUTOMATIC ZERO SETTING AFTER EACH BAG (NET WEIGH SYSTEM WORKING PRINCIPLE)

OPTIONS

  • EXECUTION WITH SS304 PRODUCT CONTACT PARTS
  • EASY TO CLEAN EXECUTION
  • WASH DOWN EXECUTION
  • PRODUCT AGITATOR ON TOP OF DOSING SCREW (DRIVEN BY A SEPARATE MOTOR)
  • PROFIBUS DP OR ANALOG COMMUNICATION INTERFACES
  • CEILING MOUNTING VERSION
  • SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)

SBS – Manual bag placing Single spout Net Weight Bagging System


Suitable for free flowing and not free flowing powdery products bagging such as:
Agriculture [seed, beans, cereal, corn, grass seed, organic pellet fertilizer] Foods [wheat, corn, rice, cereals, maize grits, wheat flour, maize flour, maize meal, pollard, pellets, semolina, malt, sugar, salt, coffee, maize grits] Animal Feed [animal feed, mineral feed, concentrated feed] Inorganic Fertilizer [urea, TSP, SSP, C.A.N., AN, NPK, rock phosphate] Petrochemicals [plastic granules, resin powders, etc.] Construction materials [sand, gravel] Fuels [coals, wood pellets] FEATURES:

  • AVAILABLE IN 3 SIZES, 1 -20 kg, 10 – 80 Kg or 25 – 200 Kg
  • SEVERAL FEEDING DEVICE AVAILABLE DEPENDING ON PRODUCT TO BE HANDLED (Gravity, Belt, single or double screw, turbine)
  • CAPACITY UP TO 22 BAGS/MIN (capacity depends on product, line configuration, bag sizes, operator skills, etc.)
  • ELLIPTICAL DUST TIGHT AUTOMATIC SPOUT
  • SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)
  • RS-485 COMMUNICATION INTERFACE
  • USER FRIENDLY OPERATOR INTERFACE

OPTIONS

  • BIRD BEAK SPOUT FOR QUICK EMPTY BAG PLACING (ONLY FOR GRANULAR NOT DUSTY PRODUCTS)
  • BIRD BEAK SPOUT WITH PRE-DUMP OPTION FOR HIGH SPEED BAGGING (ONLY FOR GRANULAR NOT DUSTY PRODUCTS)
  • QUICK BAG SIZE CHANGE OVER DEVICE AVAILABLE (mod. CBR)
  • AVAILABLE WITH SIMPLEX OR DUPLEX BAGGING SCALE
  • QUICK HEIGHT ADJUSTMENT FOR BELT CONVEYOR
  • WALKABLE WEIGHER/S SUPPORT FRAME COMPLETE WITH GUARD RAILS AND LADDER
  • SIMPLE SUPPORT FRAME
  • SPECIAL EXECUTION AVAILABLE SUCH AS SS CONTACT PARTS OR FOR AGGRESSIVE PRODUCTS AND ENVIRONMENT
  • PROFIBUS DP OR SERIAL COMMUNICATION INTERFACES
  • ELECTRO-MECHANICAL BAG SHAKER FOR A PROPER PRODUCT SETTLING

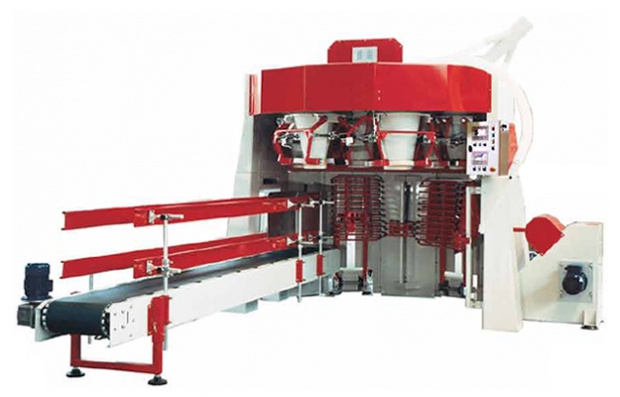

CBS – Manual bag placing Carousel Net Weight Bagging System


Suitable for floury products high speed bagging (such as maize grits, wheat flour, maize flour, maize meal, semolina, etc.)

FEATURES:

  • SEVERAL FEEDING DEVICE AVAILABLE DEPENDING ON PRODUCT TO BE HANDLED (Gravity, Belt, single or double screw, turbine)
  • CAPACITY UP TO 20 BAGS/MIN (capacity depends on product, line configuration, bag sizes, operator skills, etc.)
  • ELLIPTICAL DUST TIGHT AUTOMATIC SPOUTS
  • COMPLETE ENCLOSURE DESIGN FOR A PROPER DUST CONTROL
  • ELECTRO-MECHANICAL BAG SHAKER FOR A PROPER PRODUCT SETTLING
  • SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)
  • RS-485 COMMUNICATION INTERFACE
  • USER FRIENDLY OPERATOR INTERFACE

OPTIONS

  • AVAILABLE IN 4 OR 6 SPOUTS EXECUTION
  • PNEUMATIC BAG SHAKERS (ONLY FOR 5 & 10 kg)
  • QUICK BAG SIZE CHANGE OVER DEVICE AVAILABLE (mod. CBR)
  • AVAILABLE WITH SIMPLEX OR DUPLEX BAGGING SCALE
  • QUICK HEIGHT ADJUSTMENT FOR BELT CONVEYOR
  • AUTOMATIC FLOOR SWEEPER
  • WALKABLE WEIGHER’S SUPPORT FRAME COMPLETE WITH GUARD RAILS AND LADDER
  • SS304 CONTACT PARTS
  • PROFIBUS DP OR SERIAL COMMUNICATION INTERFACES

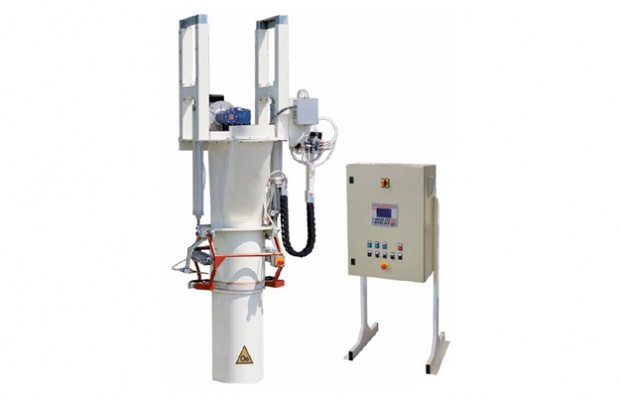

SBL – Manual Bag Placing Net Weight Vertical Auger Packer


Suitable for low density not free flowing products bagging (such as wheat bran, pollard, by-products, etc.)

  • ADJUSTABLE COMPACTING PRESSURE
  • CAN BE USED WITH EXISTING BAGGING SCALE/S
  • SS304 PRODUCT CONTACT PARTS EXECUTION AVAILABLE
  • CAPACITY UP TO 6 BAGS/MIN
  • RS-485, PROFIBUS DP OR DIGITAL COMMUNICATION INTERFACES
  • USER FRIENDLY OPERATOR INTERFACE
  • AVAILABLE IN SIMPLEX, DUPLEX EXECUTION
  • HIGH RELIABILITY THANKS TO HEAVY DUTY DESIGN
