Elevation Packaging & Equipment is proud to offer a line of Automatic Bag Placing equipment for a wide variety of Applications including Seed, Feed, Flours, Legumes/Pulses, Mineral Mixes, Salt, Sugar and more. Our Automatic Bag Hangers are built to last with ease of Maintenance and forward thinking engineering. The ABP120 Line offers Advanced Trouble Shooting with 3D Exploded views, automatic Maintenance Reminders, Realtime Data Collection and Remote Access (see video below). The ABP and ABF Systems come with Total Bag Top Control and are available with automatic Side Gusset Tucking, Dust Tight Spouts, Automatic Bag Settling / Vibration Densifier and De-Aeration Bars as options.
Fully Automatic Bag Placing / Hanging with Automatic Tag Placer

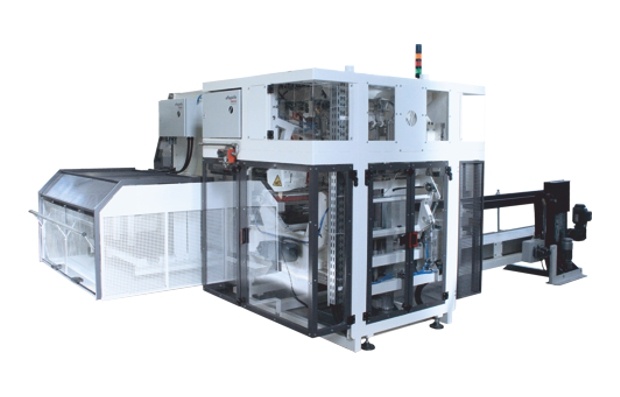

ABP120 is a High Speed Automatic Bag Hanger with Total Bag top control suitable for fine, coarse or granular FREE FLOWING products and can run up to 20 bags/min. It can handle virtually all bag specifications including Multi-wall Paper, Poly Woven, Coextruded Plastic bags, PBOM Bag with hot glue closures, Paper Outer with WPP inner liner, etc… A special execution for aggressive environment and products is also available.
Suitable for granular free flowing products bagging such as:
Agriculture [seed, beans, cereal, corn, grass seed, organic pellet fertilizer] Foods [wheat, corn, rice, cereals, maize grits, wheat flour, maize flour, maize meal, semolina, pellets, malt, sugar, salt, semolina, coffee] Animal Feed [animal feed, mineral feed, concentrated feed, pellet feed, mash feed, cattle feed, crumbles feed, etc.] Inorganic Fertilizer [urea, TSP, APS, SSP, C.A.N., AN, NPK, rock phosphate] Petrochemicals [plastic granules, resin powders, etc.] Chemicals [soda ash, light soda ash, dense soda ash, Potash, Sodium sulfate, etc.] Construction materials [sand, gravel] Fuels [coals, wood pellets]
Agriculture [seed, beans, cereal, corn, grass seed, organic pellet fertilizer] Foods [wheat, corn, rice, cereals, maize grits, wheat flour, maize flour, maize meal, semolina, pellets, malt, sugar, salt, semolina, coffee] Animal Feed [animal feed, mineral feed, concentrated feed, pellet feed, mash feed, cattle feed, crumbles feed, etc.] Inorganic Fertilizer [urea, TSP, APS, SSP, C.A.N., AN, NPK, rock phosphate] Petrochemicals [plastic granules, resin powders, etc.] Chemicals [soda ash, light soda ash, dense soda ash, Potash, Sodium sulfate, etc.] Construction materials [sand, gravel] Fuels [coals, wood pellets]
FEATURES:
- HEAVY DUTY DESIGN
- UNIQUE AND PARTICULAR EMPTY BAGS SINGLE OUT AND FLAKE OF SYSTEMS DESIGNED TO HANDLE PP WOVEN, PP LAMINATED, PP WOVEN WITH PE LINER, PE, MULTI WALL PAPER, COATED PAPER, PAPER WITH PE LINER, PAPER WITH ALUMINUM, ETC.
- BIRD BEAK SPOUT WITH PRE-DUMP OPTION FOR HIGH SPEED BAGGING (only for granular not dusty products)
- SEVERAL FEEDING DEVICE AVAILABLE DEPENDING ON PRODUCT TO BE HANDLED (gravity, belt, vibratory tray, etc.)
- CAPACITY UP TO 20 BAGS/MIN (capacity depends on product, line configuration, bag sizes, etc.)
- AUTOMATIC BAG REJECTING SYSTEM FOR MISPLACED OR UNOPENED BAGS
- MAINTENANCE FREE BAG DETECTION SYSTEM ON THE FILLING SPOUT, TO AVOID WRONG PRODUCT DISCHARGE
- MOTORIZED HEIGH ADJUSTMENT FOR TAKE AWAY CONVEYOR AND BAG CLOSING CONVEYOR
- SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)
- USER FRIENDLY OPERATOR INTERFACE
- RS-485 COMMUNICATION INTERFACE
- PREPARED TO BE USED WITH EXISTING BAGGING SCALES [speed of existing device must match abp120 requirement]
- PREPARED TO BE USED WITH EXISTING BAG CLOSING SYSTEM [speed of existing device must match abp120 requirement]
OPTIONS
- AVAILABLE WITH SIMPLEX OR DUPLEX BAGGING SCALE
- SIDE GUSSET HANDLING ACCESSORIES
- ELECTRO-PNEUMATIC BAG SHAKER FOR A PROPER PRODUCT SETTLING
- DEAREATION BARS FOR AIR EXCESS REMOVAL BEFORE BAG CLOSING
- SS304 PRODUCT CONTACT PARTS
- EXECUTION FOR AGGRESSIVE ENVIRONMENT AND PRODUCTS
- IN-LINE BAG CHECK WEIGHER AND DEDICATED BAG REJECTOR [mod. NP]
- IN-LINE BAG METAL DETECTOR AND DEDICATED BAG REJECTOR [mod. MD]
- WALKABLE WEIGHER’S SUPPORT FRAME COMPLETE WITH GUARD RAILS AND LADDER
- PROFIBUS DP OR SERIAL COMMUNICATION INTERFACES

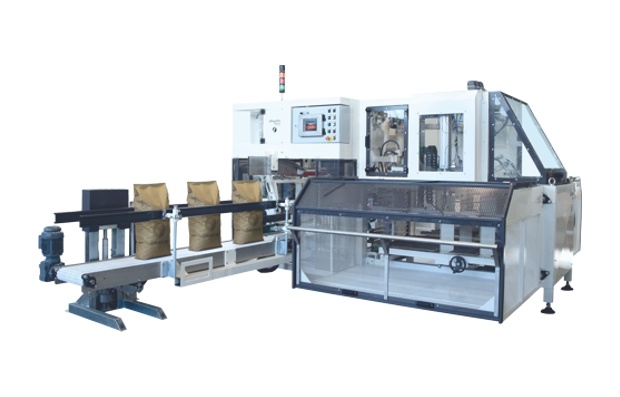

ABP120-F is a High Speed Automatic Bag Placing System suitable for both FINE POWDERS AND GRANULAR products with automatic bag hanging speed up to 20 bags/min. It can handle virtually all types of bag specifications including Laminated Poly woven, standard poly woven, Multi-wall Paper, PBOM with hot glue activated closure requiring precise bag to Heat Sealer Handoff, Paper/WPP, Plastic Coextruded bags and more…
Suitable for semi free flowing; powdery products bagging such as:
Agriculture [seed, beans, cereal, corn, grass seed, organic pellet fertilizer] Foods [wheat, corn, rice, cereals, maize grits, wheat flour, maize flour, maize meal, semolina, pellets, malt, sugar, salt, semolina, coffee] Animal Feed [animal feed, mineral feed, concentrated feed, pellet feed, mash feed, cattle feed, crumbles feed, etc.] Petrochemicals [plastic granules, resin powders, etc.]
Agriculture [seed, beans, cereal, corn, grass seed, organic pellet fertilizer] Foods [wheat, corn, rice, cereals, maize grits, wheat flour, maize flour, maize meal, semolina, pellets, malt, sugar, salt, semolina, coffee] Animal Feed [animal feed, mineral feed, concentrated feed, pellet feed, mash feed, cattle feed, crumbles feed, etc.] Petrochemicals [plastic granules, resin powders, etc.]
FEATURES:
- HEAVY DUTY DESIGN
- UNIQUE AND PARTICULAR EMPTY BAGS SINGLE OUT AND FLAKE OF SYSTEMS DESIGNED TO HANDLE PP WOVEN, PP LAMINATED, PP WOVEN WITH PE LINER, PE, MULTI WALL PAPER, COATED PAPER, PAPER WITH PE LINER, PAPER WITH ALUMINUM, ETC.
- CAPACITY RANGING FROM 10 TO 20 BPM [depending on product density and granulation]
- DUST TIGHT BIRD BEAK SPOUT WITH PRE-DUMP OPTION FOR HIGH SPEED BAGGING
- ELECTRO-PNEUMATIC BAG SHAKER DEVICE FOR A QUICK & PROPER PRODUCT SETTLING
- SEVERAL FEEDING DEVICE AVAILABLE DEPENDING ON PRODUCT TO BE HANDLED (Gravity, Belt, single or double screw, turbine)
- AUTOMATIC BAG REJECTING SYSTEM FOR MISPLACED OR UNOPENED BAGS
- MAINTENANCE FREE BAG DETECTION SYSTEM ON THE FILLING SPOUT, TO AVOID WRONG PRODUCT DISCHARGE
- MOTORIZED HEIGHT ADJUSTMENT FOR TAKE AWAY CONVEYOR AND BAG CLOSING CONVEYOR
- SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)
- USER FRIENDLY OPERATOR INTERFACE
- RS-485 COMMUNICATION INTERFACE
- PREPARED TO BE USED WITH EXISTING BAGGING SCALES [speed of existing device must match abp120f requirement]
- PREPARED TO BE USED WITH EXISTING BAG CLOSING SYSTEM [speed of existing device must match abp120f requirement]
OPTIONS
- AVAILABLE WITH SIMPLEX OR DUPLEX BAGGING SCALE
- SIDE GUSSET HANDLING ACCESSORIES
- DEAREATION BARS FOR AIR EXCESS REMOVAL BEFORE BAG CLOSING
- SS304 PRODUCT CONTACT PARTS
- IN-LINE BAG CHECK WEIGHER AND DEDICATED BAG REJECTOR [mod. NP]
- IN-LINE BAG METAL DETECTOR AND DEDICATED BAG REJECTOR [mod. MD]
- WALKABLE WEIGHER’S SUPPORT FRAME COMPLETE WITH GUARD RAILS AND LADDER
- PROFIBUS DP OR SERIAL COMMUNICATION INTERFACES

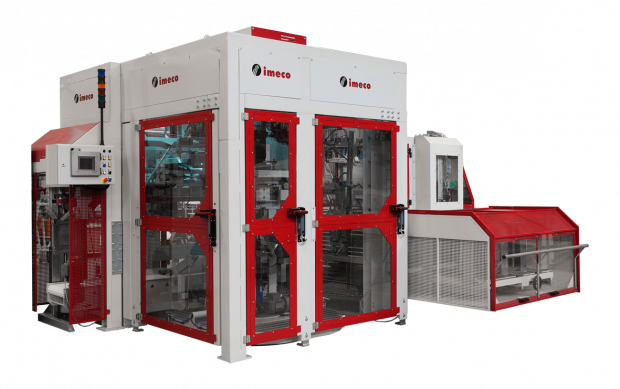

The ABP120UR is a High Speed Automatic Carousel Packer / Bag Hanger that has been specially designed for Flour, Pulses / Legumes or other Fine floury products at high-speed bagging. This Carousel Auto Bag Hanger can successfully be used with free and semi-free flowing products as well. Maximum production is up to 20 bags/minute. It can fill bags ranging from 10 to 100 Kg of woven PP bags, Multi-wall Paper, Coextruded Plastic Bags, Laminated Polypropylene, PBOM Bags with Hot Glue Activated closures or other heat sealable or fold and sewn shut bags. As with our other ABP models, the ABP 120UR Carousel has Total Bag Top Control.
Suitable for powdery products bagging such as:
Foods [wheat, corn, rice flour, maize grits, wheat flour, maize flour, maize meal, semolina] Feed [proteins, additives, etc.] Chemicals [very fine powders]
Foods [wheat, corn, rice flour, maize grits, wheat flour, maize flour, maize meal, semolina] Feed [proteins, additives, etc.] Chemicals [very fine powders]
FEATURES:
- HEAVY DUTY DESIGN
- UNIQUE AND PARTICULAR EMPTY BAGS SINGLE OUT AND FLAKE OF SYSTEMS DESIGNED TO HANDLE PP WOVEN, PP LAMINATED, PP WOVEN WITH PE LINER, PE, MULTI WALL PAPER, COATED PAPER, PAPER WITH PE LINER, PAPER WITH ALUMINUM, ETC.
- CAPACITY 18-20 BPM [depending on bag size, product density and granulation]
- No.4 DUST TIGHT BIRD BEAK SPOUTS WITH PRE-DUMP OPTION FOR HIGH SPEED BAGGING
- ELECTRO-PNEUMATIC BAG SHAKER DEVICE FOR A QUICK & PROPER PRODUCT SETTLING
- AUTOMATIC BAG REJECTING SYSTEM FOR MISPLACED OR UNOPENED BAGS
- MAINTENANCE FREE BAG DETECTION SYSTEM ON THE FILLING SPOUT, TO AVOID WRONG PRODUCT DISCHARGE
- MOTORIZED HEIGHT ADJUSTMENT FOR TAKE AWAY CONVEYOR AND BAG CLOSING CONVEYOR
- SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)
- USER FRIENDLY OPERATOR INTERFACE
- RS-485 COMMUNICATION INTERFACE
- PREPARED TO BE USED WITH EXISTING BAGGING SCALES [speed of existing device must match abp120 requirement]
- PREPARED TO BE USED WITH EXISTING BAG CLOSING SYSTEM [speed of existing device must match abp120 requirement]
OPTIONS
- SIDE GUSSET HANDLING ACCESSORIES
- DEAREATION BARS FOR AIR EXCESS REMOVAL BEFORE BAG CLOSING
- DEAREATION PROBES
- SS304 PRODUCT CONTACT PARTS
- IN-LINE BAG CHECK WEIGHER AND DEDICATED BAG REJECTOR [mod. NP]
- IN-LINE BAG METAL DETECTOR AND DEDICATED BAG REJECTOR [mod. MD]
- WALKABLE WEIGHER’S SUPPORT FRAME COMPLETE WITH GUARD RAILS AND LADDER
- PROFIBUS DP OR SERIAL COMMUNICATION INTERFACES

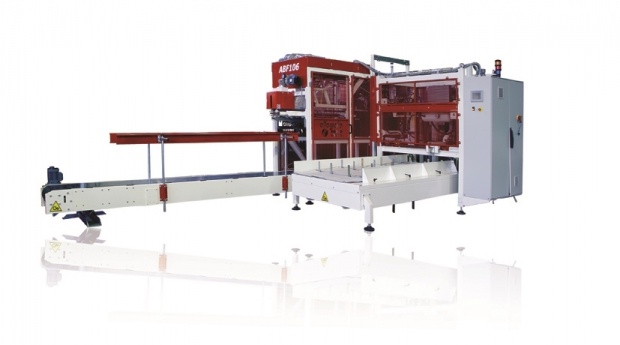

ABF-106 is suitable for both granular and powder products. This is an Automatic Bag Filling System with capacity up to 10-12 bags/min. It can handle a wide variety of bag specification and has options of a Heavy Duty Dust Tight Spout, an Automatic Bag settling device, Gusset Re-forming and more.
Suitable for free flowing and semi free flowing products bagging such as:
Agriculture [seed, beans, cereal, corn, grass seed, organic pellet fertilizer] Foods [wheat, corn, rice, cereals, maize grits, wheat flour, maize flour, maize meal, semolina, pellets, malt, sugar, salt, semolina, coffee] Animal Feed [animal feed, mineral feed, concentrated feed, pellet feed, mash feed, cattle feed, crumbles feed, etc.] Petrochemicals [plastic granules, resin powders, etc.]
Agriculture [seed, beans, cereal, corn, grass seed, organic pellet fertilizer] Foods [wheat, corn, rice, cereals, maize grits, wheat flour, maize flour, maize meal, semolina, pellets, malt, sugar, salt, semolina, coffee] Animal Feed [animal feed, mineral feed, concentrated feed, pellet feed, mash feed, cattle feed, crumbles feed, etc.] Petrochemicals [plastic granules, resin powders, etc.]
FEATURES:
- SEVERAL FEEDING DEVICES AVAILABLE DEPENDING ON PRODUCT TO BE HANDLED (Gravity, Belt, single or double screw, turbine)
- CAPACITY UP TO 10-12 BAGS/MIN (capacity depends on product, line configuration, bag sizes, etc.)
- SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)
- USER FRIENDLY OPERATOR INTERFACE
- RS-485 COMMUNICATION INTERFACE
OPTIONS
- DUST TIGHT AUTOMATIC SPOUT
- AVAILABLE WITH SIMPLEX OR DUPLEX BAGGING SCALE
- MOTORIZED QUICK HEIGHT ADJUSTMENT FOR BAG CLOSING CONVEYOR
- DEAERATION PROBES FOR AIR EXCESS REMOVAL BEFORE BAG CLOSING
- DEAERATION BARS FOR AIR EXCESS REMOVAL BEFORE BAG CLOSING
- ELECTRO-MECHANICAL BAG SHAKER FOR A PROPER PRODUCT SETTLING
- WALKABLE WEIGHER’S SUPPORT FRAME COMPLETE WITH GUARD RAILS AND LADDER
- SS304 PRODUCT CONTACT PARTS
- IN-LINE BAG CHECK WEIGHER AND DEDICATED BAG REJECTOR (mod. NP)
- IN-LINE BAG METAL DETECTOR AND DEDICATED BAG REJECTOR (mod. MD)
- PROFIBUS DP OR SERIAL COMMUNICATION INTERFACES
JBH9500 Automatic Bag Placer. For Bag Placing at up to 16 Bags/Min
The Series I includes a single bag magazine. Additional bags can be added to the magazine while the system is running. This series is designed for paper or laminated poly woven bags only. PE and PP bags will require the P Series Bag Hanger.
SYSTEM INCLUDES:
- Oil tight-Dust tight electrical controls, NEMA12.
- 460 VAC three-phase – Any change in voltage please specify. Approx. 5 Amp electricity draw. 3 SCFM’s of compressed air per cycle is required.
- Designed for automatically hanging both paper and laminated poly woven bags. Vacuum pump.
- Motorized to supply a large volume of vacuum.
- Self-Centering Magazine. Quick and easy adjustments for different bag sizes.
- Bag in place sensors & protection. Double protection to detect when a bag has not been placed, preventing the scale from discharging. Gripper Arms are equipped with sensors to detect if they have missed or lose bag.
- Inputs & outputs.
