Bagging Scales

Elevation can provide you with a variety of bagging scales.
  • COMPACT DESIGN
  • AVAILABLE WITH FOLLOWING EXECUTIONS, SS304 OR SS316 PRODUCT CONTACT PARTS, FOR AGGRESSIVE PRODUCTS & ENVIRONMENT, FOR SUGAR APPLICATION
  • AVAILABLE IN 2 SIZES, 5 – 25 KG OR 25 – 100 KG
  • CAPACITY UP TO 6 BAGS/MIN
  • RS-485, PROFIBUS DP OR DIGITAL COMMUNICATION INTERFACES
  • USER FRIENDLY OPERATOR INTERFACE
  • AUTOMATIC ZERO SETTING AFTER EACH BAG (net weigh system working principle)
  • COMPLETED WITH HEAVY DUTY SUPPORT PEDASTAL

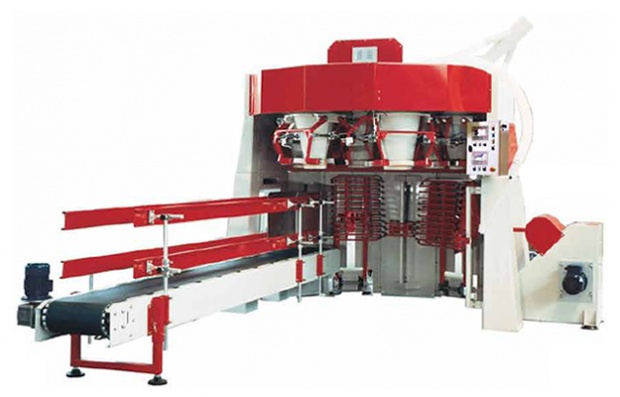

GRAVITY FFEDER: for dosing of free-flowing materials, such as SALT, Dense soda ash, plastic granules, granular fertilizer, grain, rice, sugar, semolina, etc. BELT FEEDER: for dosing of non-free-flowing materials which need to be handled carefully to maintain their structure, such as animal feed, pellets , potatoes flakes, etc. TURBINE FEEDER: mainly used for cereal flour bagging. SINGLE SCREW FEEDER: for dosing of powdery materials such as light soda ash, flours, feed pre-mixes, milk powders, minerals, etc. The electronic Gross-Weight packer mod. GW has been designed to pack, in open mouth bags granular or floury products. Thanks to its short dimensions can be placed every where also when the room available is really very small. The careful design, the use of two SINGLE POINT load cells and a sophisticated electronics on board, assure high precision and reliability. Each GW model is also equipped with FR unit (Air pressure regulation). Depending on the products characteristics FOUR models are available. Those differ each other for the feeding type. Net Weight Carousel Bagging System
  • SEVERAL FEEDING DEVICE AVAILABLE DEPENDING ON PRODUCT TO BE HANDLED (Gravity, Belt, single or double screw, turbine)
  • SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)
  • SS304 PRODUCT CONTACT PARTS EXECUTION AVAILABLE
  • CAPACITY UP TO 20 BAGS/MIN
  • BOTTOM SWEEPER AVAILABLE
  • MOD-BUS, RS-485, PROFIBUS DP OR DIGITAL COMMUNICATION INTERFACES
  • USER FRIENDLY OPERATOR INTERFACE
  • AVAILABLE IN SIMPLEX, DUPLEX OR TRIPLEX BAGGING SCALES EXECUTION
  • AVAILABLE IN 4 OR 6 SPOUTS EXECUTION

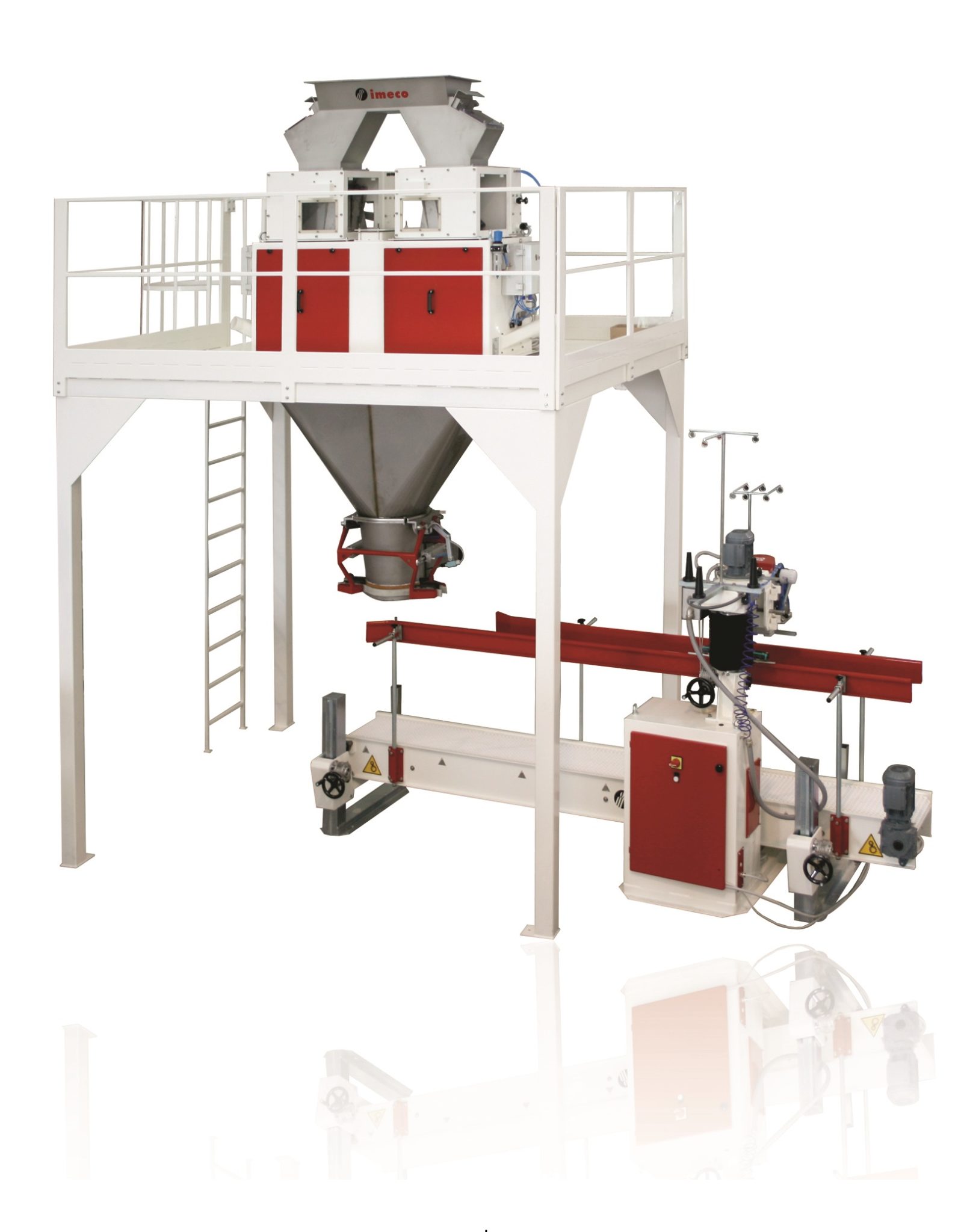

Single Spout Net Weight Bagging System
  • SEVERAL FEEDING DEVICE AVAILABLE DEPENDING ON PRODUCT TO BE HANDLED (Gravity, Belt, single or double screw, turbine)
  • SEVERAL BAG CLOSING SYSTEM AVAILABLE (sewing, heat sealing, pinch, gluing, etc.)
  • AVAILABLE WITH FOLLOWING EXECUTIONS, SS304 OR SS316 PRODUCT CONTACT PARTS, FOR AGGRESSIVE PRODUCTS & ENVIRONMENT, FOR SUGAR APPLICATION
  • CAPACITY UP TO 22 BPM/MIN (capacity depends on product, line configuration, bag sizes, operator skills, etc.)
  • RS-485, PROFIBUS DP OR DIGITAL COMMUNICATION INTERFACES
  • USER FRIENDLY OPERATOR INTERFACE
  • USER FRIENDLY OPERATOR INTERFACE
  • QUICK BAG SIZE CHANGE OVER DEVICE AVAILABLE (Mod. CBR)
  • AVAILABLE IN SIMPLEX, DUPLEX OR TRIPLEX EXECUTION

GWM WOLVERINE

  • The Wolverine provides an economical approach to filling bags from 10 lbs. to 110 lbs. (5 kg – 50kg).
  • Typical production speeds are 4‐5 bags per minute at ± 4 ounce (100 gram) accuracy.
  • The GWM scales can be supplied with a variety of spout sizes to accommodate your specific bag dimensions.
  • Flex‐Belt and Auger feeders are available to handle products that are not free flowing in nature.
  • The scales are available in mild 10 gauge steel or can be supplied with stainless steel product contact surfaces or all stainless steel construction for corrosive or food grade products such as salt, fertilizer and various food products.

GWD WILDCAT

  • The Wildcat provides an economical approach to filling bags from 10 lbs. to 110 lbs. (5 kg – 50kg) with an electronic digital bagging scale. Typical production speeds and accuracies are twice that of the GWM Wolverine mechanical scale providing 8 bags per minute at ± 2 ounce (50 gram) accuracy per bag.
  • The Wildcat system includes a digital programmable controller with memory retained recipe codes, JEM‐Link data and troubleshooting connections and is NEMA 4X‐IP65 rated.
  • The system comes standard with two 220 lb single point compression load cells, bulk and dribble gravity gate, air operated center grip spout with foot pedal clamp activation, complete electrical and pneumatic controls package with transformer for 24V (low voltage) controls.
  • The standard model includes two load cells, a three position gravity gate: open, partial open and closed, a pneumatically operated center grip spout and is constructed in mild steel construction, epoxy painted.

NW EAGLE

  • The Eagle is a high speed net weigh bagging scale capable of producing 14 bags per minute with a single head (simplex system), 22 bags per minute with a double head (duplex system) and up to 30 bags per minute with a triplehead (triplex system). The scales will obtain accuracies of ± 2 ounces on most products. The scale will pre‐weigh the product in a weigh hopper above allowing the system to fill bags, boxes, pails, drums and even super sacks with the multi dump module. Various scale feeder types are available as well as bag spout sizes.
  • On the double head (Duplex) and triple head (Triplex) systems, the scale heads operate independently of each other to allow for one head to be turned off for maintenance while the other side remains fully functional.
  • The scale includes digital programmable controller with multi‐scale screens, auto “smart” mode, memory retained recipe code, JEM‐Link data communication, weigh hopper assemblies, dual load cell design, dust tight scale housing with tool‐less access doors on all four sides, lower transition and complete electrical and pneumatic controls package including 24V (low voltage) control.

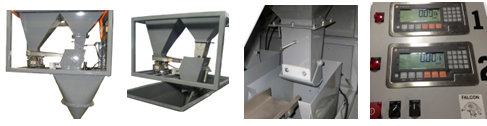

SMNW FALCON

  • The Falcon is a high speed net weigh bagging system designed for small bag and container weights from 1 lb to 20 lbs. (1/2 – 10 kg)
  • The scale is offered with a Simplex single head capable of producing 15 weighments per minute, a duplex double head capable of producing up to 26 weighments per minute and a Triplex triple head capable of producing 35+ weighments per minute.
  • The scale includes a gravity gate feeder with pantleg diverter to an Eriez electromagnetic vibratory pan feeder. The system includes your choice of a .4 or 1.0 cubic foot capacity weigh hopper and lower product transition. Various spout types and spout sizes are available as well as an auger feeder for flours, powders and other fluidic products.
  • All systems include a single point compression load cell and digital controller package with memory retained recipe codes, JEM‐Link data and troubleshooting connection, auto‐jog feature and multi‐scale screen. The auger motor will require 3 phase voltage.
  • Please choose scale with construction material, feeder type with construction material, bag spout with bag spout size, and any miscellaneous options below using the corresponding part numbers.
  • Production speeds vary with product and target weights, however typical production speeds for a Simplex scale are 10-12 discharges per minute; production speeds for a Duplex scale are up to 22 discharges per minute and a Triplex scale is capable of producing 30+ weighments per minute.

Contact us for a quote or more information.
